2-flute Carbide Drill Bits (DC208) - 1/8 in. (0.125 in. shank )


Specifications
  • Geometry - 2 flute, 1/8in. (3.18 mm) shank, drill point
  • Length - 1.5in. 0.010 in.
  • Diameter - nominal  +0.000 in.,  -0.0005 in.
  • Shank Diameter - 0.1248 in.

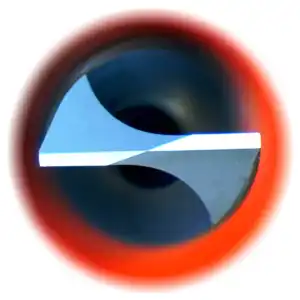

  • Total Included Tip Angle:
    • dia. ≤ 0.100 in. (2.54mm) - 135°
    • dia. > 0.101 in. (2.57mm) - 160°
  • Max. Runout (TIR) - 0.0002 in.
  • Drill Depth - varies by diameter
  • Anticipated Life - anticipated life: 3,000 holes min. (FR4 epoxy glass)
  • Material - solid submicrograin carbide flutes / stainless steel shank
  • Ring Set - 0.800 in. 0.002 in. (optional)
  • Operating RPM - CNC certified operation 20k RPM to 100k RPM
  • FEEDS & SPEEDS

Notes

  • What is a "Depth Ring"?
  • LPKF and T-Tech users must specify the make and model number of their CNC routers to insure that the rings are properly positioned!


B
enefits

  • Shallow point angle minimizes backside breakout and splintering
  • Tip geometry produces shallow glue pockets for anchoring inlaid components
  • Point geometry and back tapered flutes virtually eliminate top surface splintering
  • Four facet drill point minimizes grabbing and lifting of work-piece

Applications

  • Drilling hardwoods, composites, non-ferrous metals
  • Inlay pockets for mother-of-pearl dots
  • Drilling printed circuit substrates

Tutorials

Carbide 2-flute drill bits for PCB, phenolics, composites, plastic, non-ferrous metals and all woods and wood products


Number
Drills
Metric
Drills
Fractional Inch
Drills
Letter
Drills
Medical
Drills
Drill Bit
Sets

If your purchase is over US$50,
you save $5 in shipping!
    Sales Items
         Only
Item # Description Unit Price Depth Ring Enter Qty.
DC208-0063-015D  #96 (0.0063", 0.160mm) number drill bit, 0.150 in. max DOC   $7.62
DC208-0071-015D  #94 (0.0071", 0.180mm) number drill bit, 0.150 in. max DOC   $8.91
DC208-0083-010D  #91 (0.0083", 0.211mm) number drill bit, 0.100 in. max DOC   $8.58
DC208-0087-010D  #90 (0.0087", 0.221mm) number drill bit, 0.100 in. max DOC ***0.22mm METRIC EQUIVALENT   $8.58
DC208-0095-015D  #88 (0.0095", 0.241mm) number drill bit, 0.150 in. max DOC   $8.58
DC208-0100-015D  #87 (0.0100in, 0.254mm) number drill bit, 0.150 in. max DOC ***SHIPS AS 0.25mm   $8.58    Sale Price: $6.00
DC208-0105-022D  #86 (0.0105in, 0.267mm) number drill bit, 0.220 in. max DOC   $8.58
DC208-0110-015D  #85 (0.0110in, 0.279mm) number drill bit, 0.150 in. max DOC ***0.28mm METRIC EQUIVALENT   $6.20
DC208-0110-022D  #85 (0.0110in, 0.279mm) number drill bit, 0.220 in. max DOC ***0.28mm METRIC EQUIVALENT   $6.20
DC208-0120-020D  #83 (0.0120in, 0.305mm) number drill bit, 0.200 in. max DOC ***0.30mm METRIC EQUIVALENT   $4.34
DC208-0125-028D  #82 (0.0125in, 0.317mm) number drill bit, 0.280 in. max DOC   $3.66
DC208-0130-023D  #81(0.0130in, 0.330mm) number drill bit, 0.230 in. max DOC   $3.66
DC208-0145-022D  #79 (0.0145in, 0.368mm) number drill bit, 0.220 in. max DOC   $2.82
DC208-0160-030D  #78 (0.0160in, 0.406mm) number drill bit, 0.300 in. max DOC ***0.40mm METRIC EQUIVALENT   $2.82
DC208-0180-031D  #77 (0.0180in, 0.457mm) number drill bit, 0.310 in. max DOC ***0.45mm METRIC EQUIVALENT   $2.82
DC208-0200-036D  #76 (0.0200in, 0.508mm) number drill bit, 0.360 in. max DOC ***0.50mm METRIC EQUIVALENT   $2.82
DC208-0210-036D  #75 (0.0210in, 0.533mm) number drill bit, 0.360 in. max DOC   $2.82
DC208-0225-036D  #74 (0.0225", 0.571mm) number drill bit, 0.360 in. max DOC   $2.82
DC208-0240-040D  #73 (0.0240", 0.610mm) number drill bit, 0.400 in. max DOC   $2.82
DC208-0250-040D  #72 (0.0250", 0.635mm) number drill bit, 0.400 in. max DOC   $2.82
DC208-0260-040D  #71 (0.0260", 0.660mm) number drill bit, 0.400 in. max DOC   $2.82
DC208-0280-040D  #70 (0.0280", 0.711mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0292-040D  #69 (0.0292", 0.742mm) number drill bit, 0.400 in. max DOC ***0.75mm METRIC EQUIVALENT   $2.48
DC208-0310-040D  #68 (0.0310", 0.787mm) number drill bit, 0.400 in. max DOC ***1/32 FRACTIONAL EQUIVALENT   $2.48
DC208-0320-040D  #67 (0.0320", 0.813mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0330-040D  #66 (0.0330", 0.838mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0350-040D  #65 (0.0350", 0.889mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0360-040D  #64 (0.0360", 0.914mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0370-040D  #63 (0.0370", 0.940mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0380-040D  #62 (0.0380", 0.965mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0390-040D  #61 (0.039")1/8 in. carbide number (wire) drill bit, 1.5 in. OAL, PCB, cuemaker, luthier, jeweller, clockmaker ***1.0mm METRIC EQUIVALENT   $2.48
DC208-0400-040D  #60 (0.0400", 1.016mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0400-063D  #60 (0.0400", 1.016mm) number drill bit, 0.625 in. max DOC (0.900" ring depth)   $7.28    Sale Price: $5.09
DC208-0410-040D  #59 (0.0410", 1.041mm) number drill bit, 0.400 in. max DOC ***1.05mm METRIC EQUIVALENT   $2.48
DC208-0420-040D  #58 (0.0420", 1.067mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0430-040D  #57 (0.0430", 1.092mm) number drill bit, 0.400 in. max DOC ***1.10mm METRIC EQUIVALENT   $2.48
DC208-0465-040D  #56 (0.0465", 1.181mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0520-040D  #55 (0.0520", 1.321mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0520-062D  #55 (0.0520") 1/8 in. shank carbide 0.40in. extended plunge drill bit, 0.620 in. max DOC   $7.98    Sale Price: $5.58
DC208-0550-040D  #54 (0.0550", 1.397mm) number drill bit, 0.400 in. max DOC ***1.40mm METRIC EQUIVALENT   $2.48
DC208-0595-040D  #53 (0.0595", 1.511mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0635-040D  #52 (0.0635", 1.613mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0670-040D  #51 (0.0670", 1.702mm) number drill bit, 0.400 in. max DOC ***1.70mm METRIC EQUIVALENT   $2.48
DC208-0700-040D  #50 (0.0700", 1.778mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0730-040D  #49 (0.0730", 1.854mm) number drill bit, 0.400 in. max DOC   $2.48
DC208-0760-040D  #48 (0.0760", 1.930mm) number drill bit, 0.400 in. max DOC   $2.48    Sale Price: $1.73
DC208-0785-040D  #47 (0.0785", 1.994mm) number drill bit, 0.400 in. max DOC ***2.00mm METRIC EQUIVALENT   $2.76
DC208-0810-040D  #46 (0.0810", 2.057mm) number drill bit, 0.400 in. max DOC ***2.05mm METRIC EQUIVALENT   $2.76
DC208-0820-040D  #45 (0.0820", 2.083mm) number drill bit, 0.400 in. max DOC   $2.76
DC208-0860-040D  #44 (0.0860", 2.184mm) number drill bit, 0.400 in. max DOC   $2.76
DC208-0890-040D  #43 (0.0890", 2.260mm) number drill bit, 0.400 in. max DOC   $2.76
DC208-0935-040D  #42 (0.0935", 2.375mm) number drill bit, 0.400 in. max DOC ***3/32 FRACTIONAL EQUIVALENT   $2.76
DC208-0960-040D  #41(0.0960", 2.438mm) number drill bit, 0.400 in. max DOC   $2.76
DC208-0980-040D  #40(0.0980", 2.489mm) number drill bit, 0.400 in. max DOC   $2.76
DC208-0995-040D  #39 (0.0995", 2.528mm) number drill bit, 0.400 in. max DOC   $2.76    Sale Price: $1.93
DC208-1015-040D  #38 (0.1015", 2.578mm) number drill bit, 0.400 in. max DOC   $2.76    Sale Price: $1.93
DC208-1040-040D  #37 (0.1040", 2.641mm) number drill bit, 0.400 in. max DOC   $2.76
DC208-1065-040D  #36 (0.1065", 2.705mm) number drill bit, 0.400 in. max DOC ***2.70mm METRIC EQUIVALENT   $2.76
DC208-1100-040D  #35 (0.1100", 2.794mm) number drill bit, 0.400 in. max DOC ***2.80mm METRIC EQUIVALENT   $2.76    Sale Price: $1.93
DC208-1110-040D  #34 (0.1110", 2.819mm) number drill bit, 0.400 in. max DOC   $2.76    Sale Price: $1.93
DC208-1130-040D  #33 (0.1130", 2.870mm) number drill bit, 0.400 in. max DOC   $2.76    Sale Price: $1.93
DC208-1160-040D  #32 (0.1160", 2.946mm) number drill bit, 0.400 in. max DOC   $2.76    Sale Price: $1.93
DC208-1285-050D  #30 (0.1285", 3.263mm) number drill bit, 0.500 in. max DOC   $5.25    Sale Price: $4.28
DC208-1405-050D  #28 (0.1405", 3.568mm) number drill bit, 0.500 in. max DOC ***9/64 FRACTIONAL EQUIVALENT   $5.25    Sale Price: $4.28
DC208-1440-050D  #27 (0.1440", 3.657mm) number drill bit, 0.500 in. max DOC   $6.38    Sale Price: $4.46
DC208-1470-050D  #26 (0.1470", 3.733mm) number drill bit, 0.500 in. max DOC   $7.19    Sale Price: $5.03
DC208-1495-050D  #25 (0.1495", 3.797mm) number drill bit, 0.500 in. max DOC *** SHIPS AS 3.80mm METRIC EQUIVALENT   $6.38    Sale Price: $4.46
DC208-1520-050D  #24 (0.1520", 3.860mm) number drill bit, 0.500 in. max DOC   $6.38    Sale Price: $4.46
DC208-1540-050D  #23 (0.1540", 3.911mm) number drill bit, 0.500 in. max DOC   $6.38    Sale Price: $4.46
DC208-1570-050D  #22 (0.1570", 3.987mm) number drill bit, 0.500 in. max DOC   $6.39    Sale Price: $4.47
DC208-1590-050D  #21 (0.1590", 4.038mm) number drill bit, 0.500 in. max DOC ***4.05MM METRIC EQUIVALENT   $7.15    Sale Price: $5.00
DC208-1612-050D  #20 (0.1612", 4.094mm) number drill bit, 0.500 in. max DOC   $7.15    Sale Price: $5.00
DC208-1660-050D  #19 (0.1660", 4.216mm) number drill bit, 0.500 in. max DOC   $7.15    Sale Price: $5.00
DC208-1695-050D  #18 (0.1695", 4.305mm) number drill bit, 0.500 in. max DOC ***SHIPS AS 4.30MM METRIC EQUIVALENT   $7.15    Sale Price: $5.00
DC208-1770-050D  #16 (0.1770", 4.495mm) number drill bit, 0.500 in. max DOC ***4.50mm METRIC EQUIVALENT   $7.91    Sale Price: $5.53
DC208-1820-050D  #14 (0.1820", 4.622mm) number drill bit, 0.500 in. max DOC   $7.91    Sale Price: $5.53
DC208-1850-050D  #13 (0.1850", 4.698mm) number drill bit, 0.500 in. max DOC ***4.70mm METRIC EQUIVALENT   $7.91    Sale Price: $5.53
DC208-1890-050D  #12 (0.1890", 4.800mm) number drill bit, 0.500 in. max DOC ***4.80mm METRIC EQUIVALENT   $7.91    Sale Price: $5.53
DC208-1935-050D  #10 (0.1935", 4.914mm) number drill bit, 0.500 in. max DOC   $9.24    Sale Price: $6.46
DC208-1960-050D  #9 (0.1960", 4.978mm) number drill bit, 0.500 in. max DOC   $9.24    Sale Price: $6.46
DC208-1990-050D  #8 (0.1990", 5.054mm) number drill bit, 0.500 in. max DOC   $9.24    Sale Price: $6.46
DC208-2010-050D  #7 (0.2010", 5.105mm) number drill bit, 0.500 in. max DOC ***5.10mm METRIC EQUIVALENT   $9.24    Sale Price: $6.46
DC208-2040-050D  #6 (0.2040", 5.181mm) number drill bit, 0.500 in. max DOC   $9.24    Sale Price: $6.46
DC208-2055-050D  #5 (0.2055", 5.219mm) number drill bit, 0.500 in. max DOC   $9.91    Sale Price: $6.93
DC208-2090-050D  #4 (0.2090", 5.308mm) number drill bit, 0.500 in. max DOC ***5.30mm METRIC EQUIVALENT   $9.91    Sale Price: $6.93
DC208-2210-050D  #2 (0.2210", 5.613mm) number drill bit, 0.500 in. max DOC   $9.91    Sale Price: $6.93
DC208-2280-050D  #1 (0.2280", 5.790mm) number drill bit, 0.500 in. max DOC ***5.80mm METRIC EQUIVALENT   $10.96    Sale Price: $7.67
Enter the desired quantity (Enter Qty) then click on the "Add to Cart" Button.

Order your bits in 10-packs (10 of the same tool) and save 9% off the retail price
