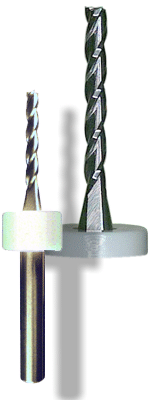

DeepReach 3-Flute High Aspect-ratio Fish-tail End-mills - (0.125" shank )

Specifications
  • Geometry - 3 flute, 1/8 in. (6.35 mm) shank, fish-tail tip
  • Length - as shown. ±0.010 in.
  • Aspect ratio - min. 6:1
  • Diameter - nominal  +0.0000 -0.0010 in.
  • Runout (TIR) - max 0.0002 in.
  • Max. depth of cut - nominal ±0.005 in.
  • Anticipated Life - depends on material being cut (min 20,000 in, blue or green jeweler's wax)
  • Material - solid submicrograin carbide
  • Operating RPM - CNC certified operation 1k RPM to 60k RPM

Notes

  • What is a "Bushing"? (bushings CANNOT be removed and reused)
  • What is a "Depth Ring"?


Benefits

  • Fish tail point eliminates  backside breakout and splintering
  • 3-Flute design reduces resonance and chatter under high chip loads
  • High flute volume supports high feed rates / chip loads
  • High aspect ratio for deep single-pass cutting
  • Flute geometry optimized for cutting sign foam, sign board, gator board, western red cedar, redwood and selected hardwoods
  • DeepReach design optimized for high-relief carving.

Applications

  • Dimensional signage
  • 3D countouring
  • Cabinetry, furniture making
  • Jewelry mold making

US$50 Minimum Order
CLOSED FOR INVENTORY MAINTENANCE
SEPTEMBER 15 & 16, 2010
We will reopen @ 9:00AM Friday September 17, 2010.
Item # Description Unit Price Bushing Depth Ring Enter Qty.
MM308-0200-013F  0.0200 in (0.51mm) dia. DeepReach Fish-tail End-mill, 3-flute, 0.125 in. max DOC, 1.5 in. OAL   $20.23
MM308-0394-025F  1 mm. (.0394 in) dia. DeepReach Fish-tail End-mill, 3-flute, 0.250 in. max DOC, 1.5 in. OAL   $11.78
MM308-0625-050F  1/16 in. (.0625 in., 1.59 mm) dia. DeepReach Fish-tail End-mill, 3-flute, 0.50 in. max DOC, 1.5 in. OAL   $12.65
MM308-0625-050FC  1/16 in. (.0625 in., 1.59 mm) dia., ZrN coated DeepReach Fish-tail End-mill, 3-flute, 0.50 in. max DOC, 1.5 in. OAL   $15.95
MM308-1250-100F  1/8 in. (0.1250 in., 3.18mm) dia. DeepReach Fish-tail End-mill, 3-flute, 1.00 in. max DOC, 2.5 in. OAL   $29.95
MM308-1250-100FC  1/8 in. (0.1250 in., 3.18mm) dia. DeepReach ZrN coated Fish-tail End-mill, 3-flute, 1.00 in. max DOC, 2.5 in. OAL   $39.95
MM308-1250-125BL  1/8 in. (0.125 in, 3.18 mm) dia. DeepReach Ball-nose End-mill, 3-flute, 1.25 in. max DOC, 3.0 in. OAL   $48.47
MM308-1250-125FL  1/8 in. (0.1250 in., 3.18mm) dia. DeepReach Fish-tail End-mill, 3-flute, 1.25 in. max DOC, 3.0 in. OAL   $36.91

Enter a Qty then select the "Order" Button.
Order your bits in 10 packs and save 9% off the retail price
Most orders ship within one busines day, subject to credit approval and availability.
