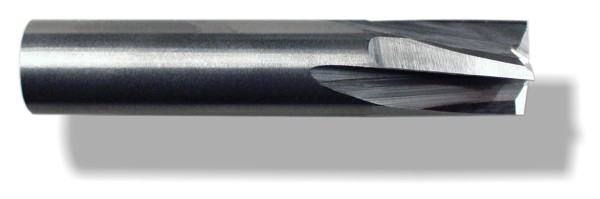

4-flute Carbide Skiving Cutter (EM438-3750) Specifications - (0.375" shank)


Specifications

  • Geometry - V-tip 4 - high-shear straight-flutes, extended length, 3/8 in. (9.53 mm) shank, end-cutting
  • Angle - nominal 0.5
  • Length - 2.0 in. 0.010 in.
  • Diameter - 3/8 in. (9.53 mm) nominal  +0.0000 in.,  -0.0020 in.
  • Shank dia. - 3/8 in. (9.53 mm) +0.00, -0.0002 in.
  • Runout (TIR) - 0.0002 in.
  • Max. depth of cut - 0.375 in. 0.005 in.
  • Anticipated Life - min. 10,000 linear inches (composite, Micarta)
  • Material - solid submicrograin carbide
  • Operating RPM - CNC certified operation 20k RPM to 60k RPM

Applications

  • Skiving counter-board edges and locators
  • Shaving FR-4 substrate edges


B
enefits

  • 110 in./min. @ 22.5 KRPM (Micarta)
  • High flute volume supports high feed rates / chip loads
  • Innovative split-flute, end cutting geometry significantly reduces noise
  • Cutting edge geometry virtually eliminates chatter at high feed rates
  • Straight flute geometry eliminates lifting and gouging of the substrate
Carbide 4-flute skiving cutter for phenolic counterboards Product Page
2-flute skiving tip
Conventional Skiving Tool

If your purchase is over US$50,
you save $5 in shipping!
    Sales Items
         Only
Item # Description Unit Price Enter Qty.
EM438-3750-155V  155 skiving cutter, 3/8 in. dia, 3/8 in. shank   $48.25
EM438-3750-155VC  155 skiving cutter, 3/8 in. dia, 3/8 in. shank, ZrN coated   $58.25
EM438-3750-170V  170 skiving cutter, 3/8 in. dia, 3/8 in. shank   $48.25
EM438-3750-170VC  170 skiving cutter, 3/8 in. dia, 3/8 in. shank, ZrN coated   $58.25
Enter the desired quantity (Enter Qty) then click on the "Add to Cart" Button.
