DeepReach 3-Flute High Aspect-ratio Fish-tail End-mills - (0.125" shank )


Specifications
  • Geometry - 3 flute, 1/8 in. (6.35 mm) shank, fish-tail tip
  • Overall Length (OAL)- as shown. 0.010 in.
  • Aspect ratio - min. 6:1
  • Diameter -
    • 0.0000 in. to 0.0625 in. = nominal 0.0005 in.
    • 0.0630 in. to 0.1181 in. = nominal 0.0010 in.
    • 0.1250 in. = 0.1248 in. +0.0000 in., -0.0020 in.
  • Runout
    • OAL = 1.50in: TIRmax < 0.0005 in.
    • OAL = 2.50in: TIRmax < 0.0010 in.
    • OAL = 3.00in: TIRmax < 0.0015 in.
  • Max. depth of cut - nominal 0.005 in.
  • Anticipated Life - depends on material being cut (min 20,000 in, blue or green jeweler's wax)
  • Material - solid submicrograin carbide
  • Operating RPM - CNC certified operation 1k RPM to 60k RPM

Notes

Tutorials


B
enefits

  • Fish tail point eliminates  backside breakout and splintering
  • 3-Flute design reduces resonance and chatter under high chip loads
  • High flute volume supports high feed rates / chip loads
  • High aspect ratio for deep single-pass cutting
  • Flute geometry optimized for cutting sign foam, sign board, gator board, western red cedar, redwood and selected hardwoods
  • DeepReach design optimized for high-relief carving.

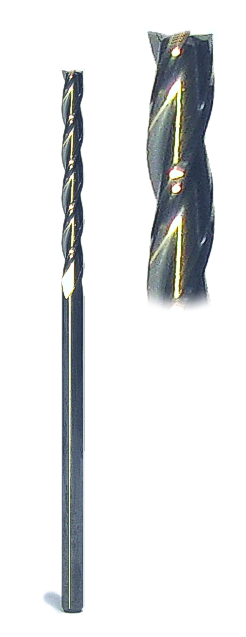

Carbide 3-flute deep reach micro end mill

Applications

  • Dimensional signage
  • 3D countouring
  • Cabinetry, furniture making
  • Jewelry mold making
Carbide 3-flute deep reach micro end mill tip

If your purchase is over US$50,
you save $5 in shipping!
    Sales Items
         Only
Item # Description Unit Price Depth Ring Enter Qty.
MM308-0156-010F  0.0156 in (0.40mm) dia 3-flute DeepReach Hex neck Fish-tail End-mill, 0.100 in. max DOC, 1.50 in. OAL   $28.24    Sale Price: $13.20
MM308-0200-013F  0.0200 in (0.51mm) dia DeepReach Fish-tail End-mill, 3-flute, 0.1250 in. max DOC, 3 flute, 1/8" shank, fish-tail upcut style, solid submicrograin carbide bit, 1.50 in. OAL   $21.37
MM308-0230-015F  0.0230 in (0.58mm) dia DeepReach Fish-tail Hex neck End-mill, 3-flute, 0.1250 in. max DOC, 3 flute, 1/8" shank, fish-tail upcut style, solid submicrograin carbide bit, 1.50 in. OAL   $26.40    Sale Price: $13.20
MM308-0313-020F  0.0313 in (0.80mm) dia DeepReach Fish-tail Hex neck End-mill, 3-flute, 0.1250 in. max DOC, 3 flute, 1/8" shank, fish-tail upcut style, solid submicrograin carbide bit, 1.50 in. OAL   $20.23    Sale Price: $13.20
MM308-0394-025F  0.0394in (1.00mm) dia. DeepReach Fish-tail End-mill, 3-flute, 0.250 in. max DOC, 3 flute, 1/8" shank, fish-tail upcut style, solid submicrograin carbide bit, 1.50 in. OAL   $12.92
MM308-0570-050F  0.0570 in. (1.45mm) dia. DeepReach Fish-tail End-mill, 0.50 in. max DOC, 3 flute, 1/8" shank upcut style, solid submicrograin carbide bit, 1.50 in. OAL   $15.12    Sale Price: $10.99
MM308-0625-050F  1/16 in. (0.0625 in., 1.59mm) dia. DeepReach Fish-tail End-mill, 0.50 in. max DOC, 3 flute, 1/8" shank upcut style, solid submicrograin carbide bit, 1.50 in. OAL   $13.80
MM308-0625-050FC  1/16 in. (0.0625 in., 1.59mm) dia., ZrN coated DeepReach Fish-tail End-mill, 3-flute, 0.50 in. max DOC, 1.5 in. OAL   $17.09
MM308-0938-050F  3/32 in. (0.0938 in., 2.38mm) dia. DeepReach Fish-tail End-mill, 3-flute, 0.50 in. max DOC, 1.5 in. OAL   $13.79    Sale Price: $10.02
MM308-1250-100F  1/8 in. (0.1250 in., 3.175mm) dia. DeepReach Fish-tail End-mill, 3-flute, 1.00 in. max DOC, 2.5 in. OAL   $26.95
MM308-1250-100FC  1/8 in. (0.1250 in., 3.175mm) dia. DeepReach ZrN coated Fish-tail End-mill, 3-flute, 1.00 in. max DOC, 2.5 in. OAL   $30.95
MM308-1250-113FL  1/8 in. (0.1250 in, 3.175mm) dia. DeepReach Fish-tail End-mill, 1.125 in. max DOC, 3 flute, 1/8" shank upcut style, solid submicrograin carbide bit, 3.0 in. OAL   $28.40
Enter the desired quantity (Enter Qty) then click on the "Add to Cart" Button.

Order your bits in 10-packs (10 of the same tool) and save 9% off the retail price
